01
Review
Drawings, specifications and acceptance criteria are reviewed before release.
Built to your drawings and specifications
Juding manufactures each cylinder to the customer's drawings, technical specifications and acceptance criteria. Before production, our engineering team reviews the design and manufacturing process to define controls for critical dimensions, materials, welding, surface treatment and inspection.
- Manufactured to customer drawings and specifications
- Engineering review before production release
- Materials and critical processes controlled by project requirements
- Inspection and testing completed to the agreed quality plan
- Complete documentation supplied with the finished cylinder

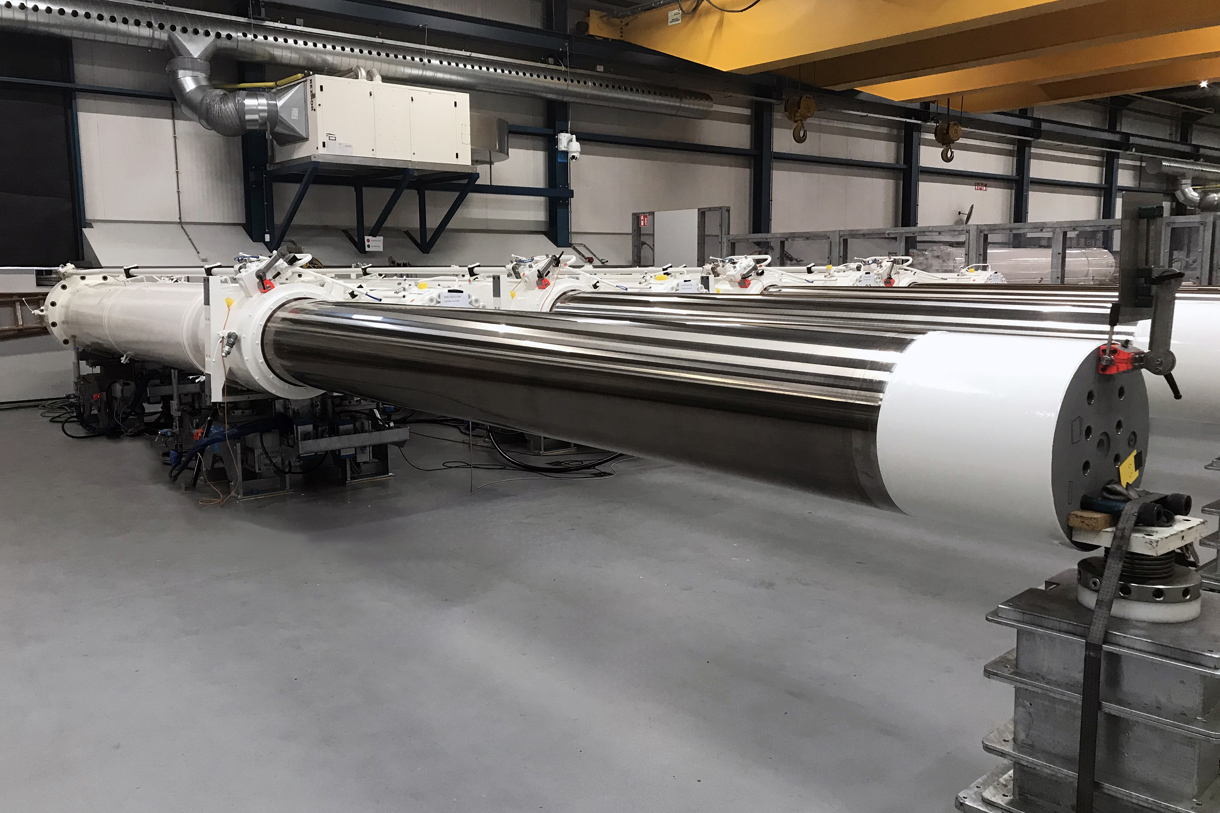

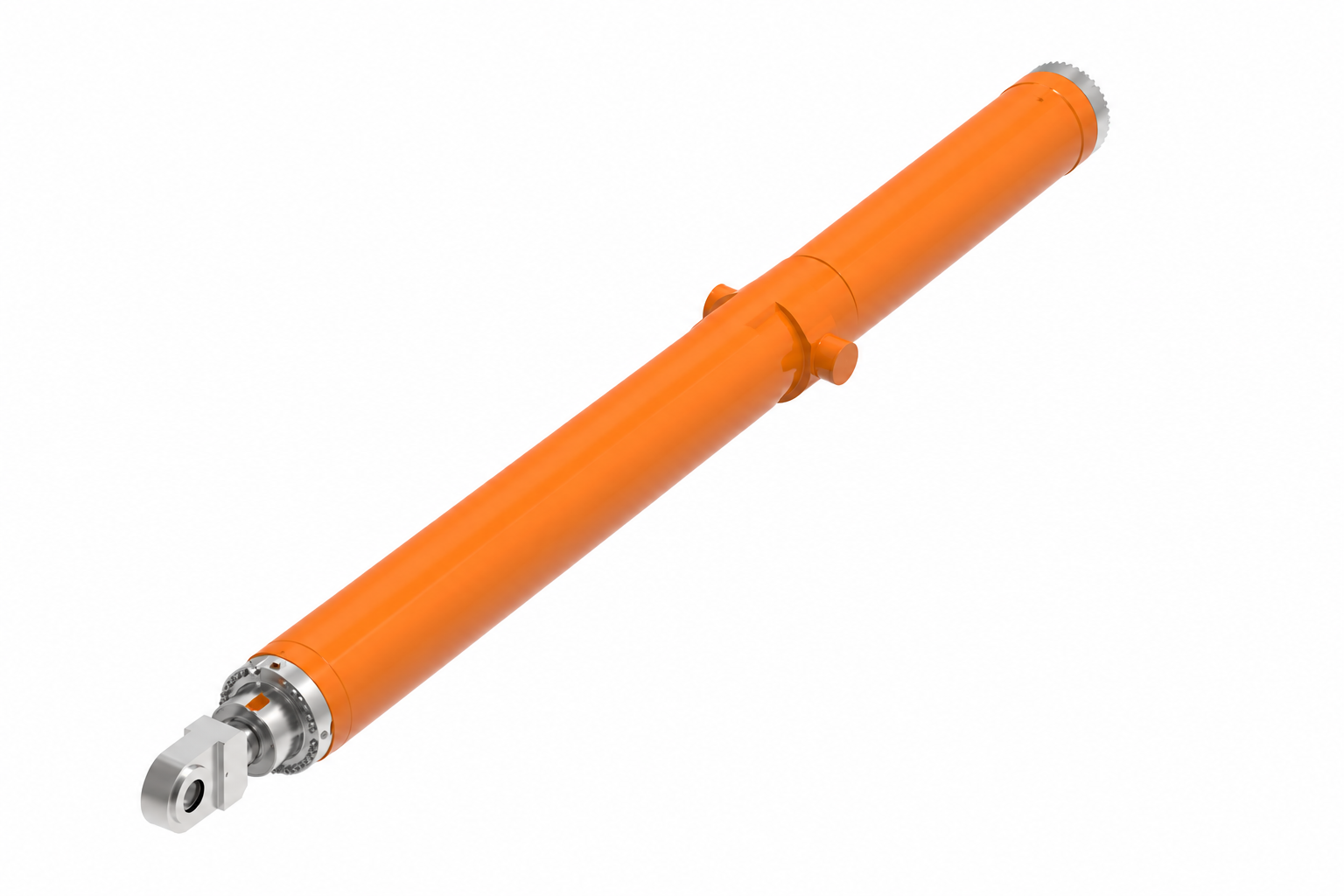

Large cylinders for demanding projects
Juding supports build-to-print and engineering-collaboration projects. Before production release, our team reviews the drawings, technical specifications and acceptance criteria to ensure the manufacturing plan is fully aligned with project requirements.
Technical review
Critical requirements confirmed before production
Our engineering and quality teams review the customer's drawings and project specifications, identify critical characteristics, and establish a controlled, traceable manufacturing and inspection plan.
- Customer drawings and technical specifications
- Materials, tolerances and critical dimensions
- Welding procedures and nondestructive testing requirements
- Machining, honing and surface-treatment requirements
- Inspection and performance-test criteria
- Documentation, marking and delivery requirements
Project process
From drawing review to final delivery
02
Plan
Manufacturing, welding, assembly and inspection processes are defined.
03
Manufacture
Production and assembly follow controlled drawings and the agreed quality plan.
04
Deliver
Required inspection, testing and documentation are completed before shipment.

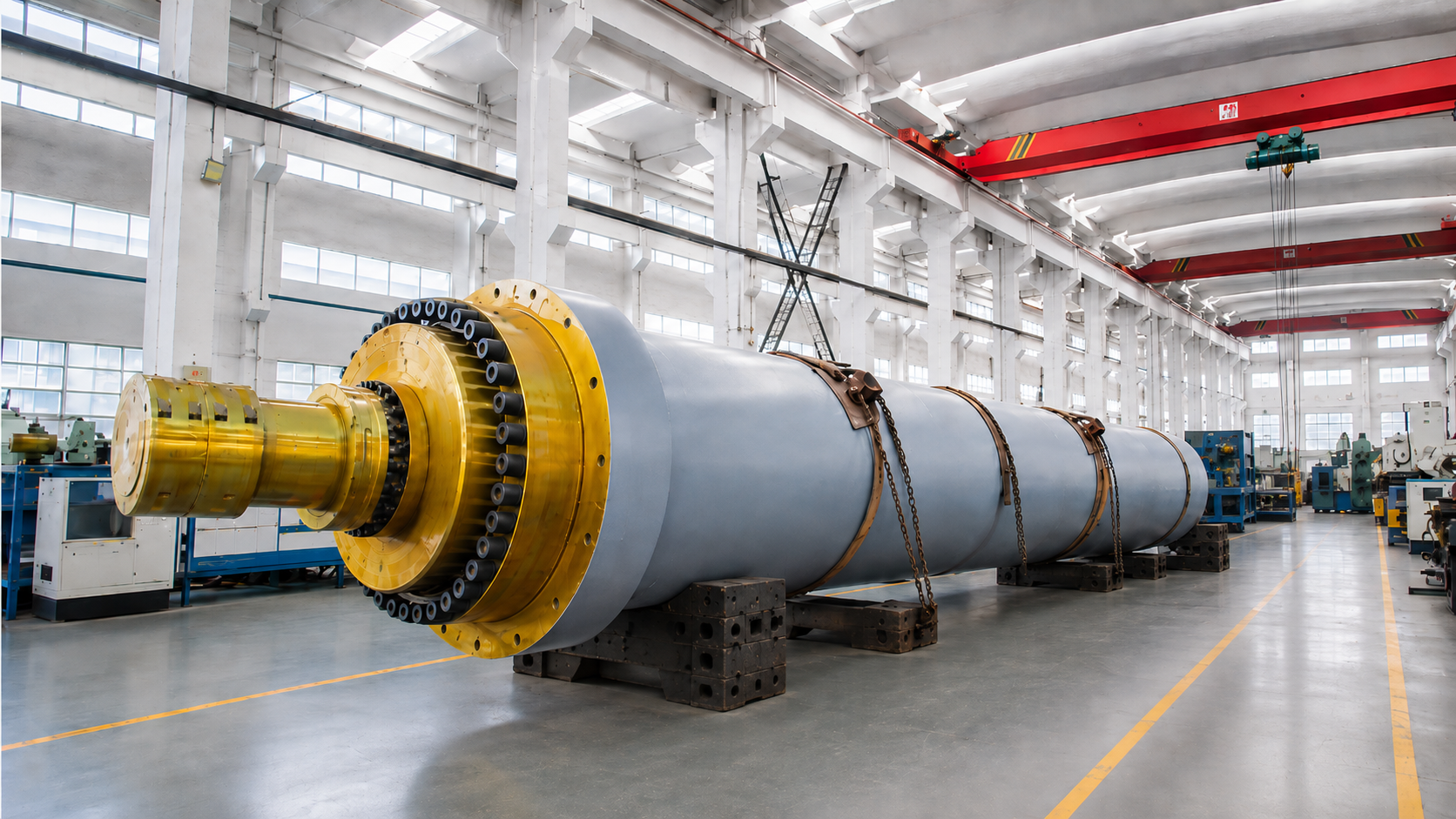

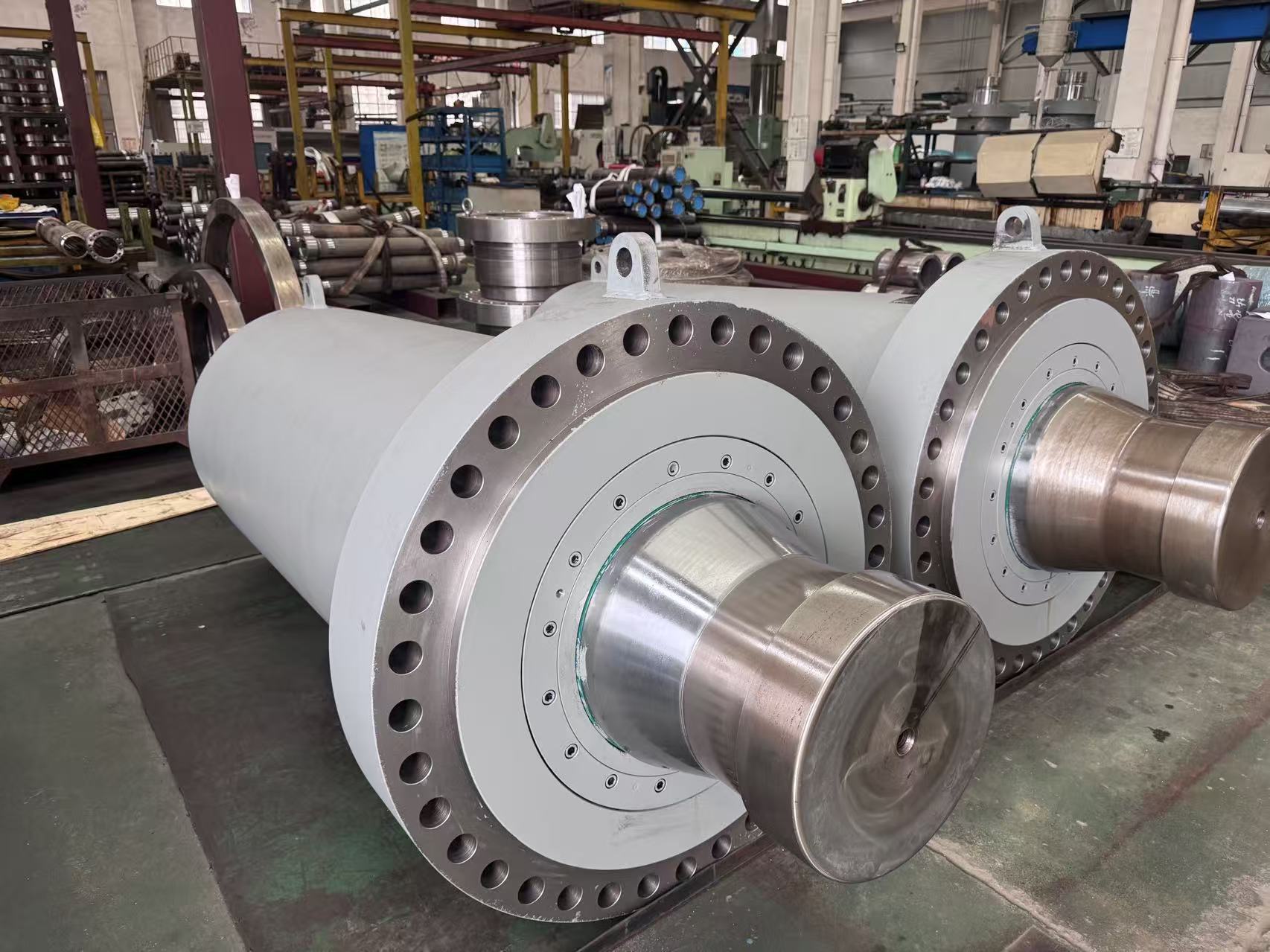

Built for one project at a time
See how precision engineering and heavy manufacturing come together to produce large hydraulic cylinders for demanding projects and operating environments.
Documents
Download company and technical information from Juding Heavy Industry.
TypeUpdatedDownloadFile type
Technical report
Juding Hydraulics Technical Capacity Report 2026
Updated 07 Sep 2026 · .pdf
07 Sep 2026
8.98 MBApplications

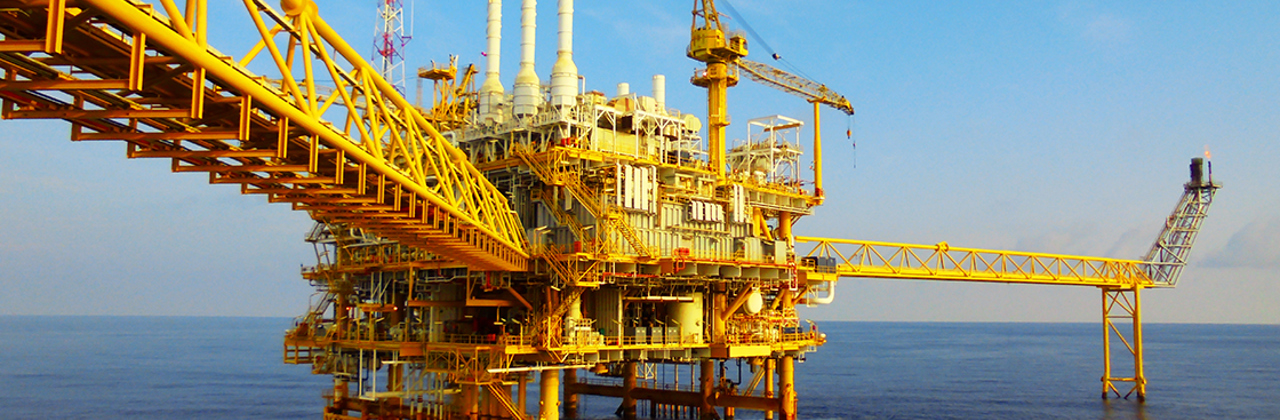

Where large cylinders work
- Oil & gas
- Marine
- Hydropower and civil engineering
- Mining and bulk material handling
- Heavy industry
Send your drawings for project review
Send us your drawings and technical specifications. Our engineering team will review manufacturability, critical processes, quality requirements and delivery planning.
